Project

Introduction of Project for AHU in Georgia

Sixteen rooftop units are used in a commercial building with an area of 1000.

Located in Georgia.

Features of the rooftop units:

  1. 1. Hermetic scroll compressors from famous brands such as Hitachi, Copeland, Daikin, etc.
  2. 2. Packaging design, placed on the roof or flat ground, space-saving installation, easy to install.
  3. 3. Copper pipes with aluminum heat exchange fins, water-friendly fins for the condenser, copper fins also available.
  4. 4. Computer control system, simple interface, automatic temperature adjustment, convenient operation and easy maintenance.
  5. 5. Galvanized steel plate, electrostatic paint on the exterior, corrosion-resistant and weather-condensation type.
  6. 6. Flexible hose connection, high static pressure, suitable for industrial plants.
  7. 7. Fresh air can be introduced, improving indoor air quality.
  8. 8. Hot water coils or electric heaters can be added, heat pump type also available.
  9. 9. Refrigerants: R22, R407C, R134a options available.

Specifications for this project:

Item No Model No Airflow CMH

Cooling

Power (kw)

 Cooling Temperature

Heating

Power (kw)

 Hot Temperature Special Quantity / Unit
1 TZ195-40LNF 19500 120 T1: +40°C, T2: +18°C 150 T1: +3°C, T2: +25° - 27°C 400 2
2 TZ052-10LNF 5200 25 T1: +40°C, T2: +18°C 28 T1: +3°C, T2: +25° - 27°C 250 2
3 TZ030-7.5LNF 3000 18 T1: +40°C, T2: +18°C 20 T1: +3°C, T2: +25° - 27°C 300 2
4 TZ036-10LNF 3600 25 T1: +40°C, T2: +18°C 36 T1: +3°C, T2: +25° - 27°C 350 2
5 TZ150-30LNF 15000 95 T1: +40°C, T2: +18°C 120 T1: +3°C, T2: +25° - 27°C 400 2
6 TZ035-7.5LNF 3500 19 T1: +40°C, T2: +18°C 19 T1: +3°C, T2: +25° - 27°C 350 2
7 TZ062-15LNF 6200 42 T1: +40°C, T2: +18°C 60 T1: +3°C, T2: +25° - 27°C 300 2

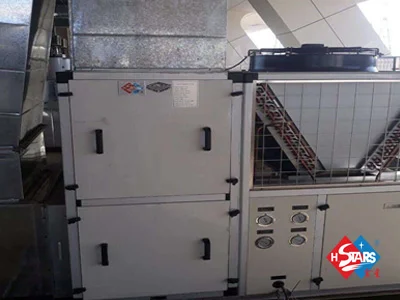

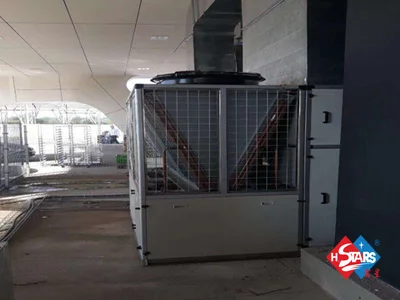

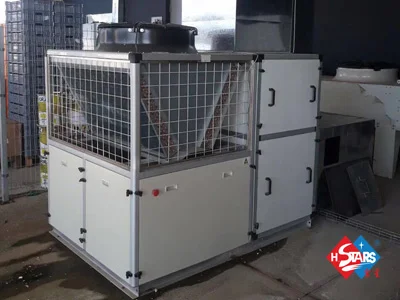

Installation Images

industrial air handling units

Air Handling Unit System

Air Handling Unit
