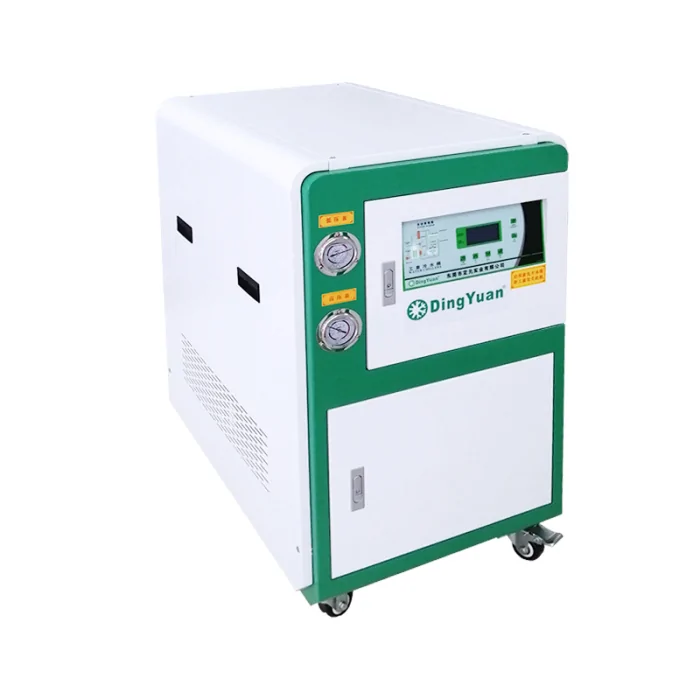

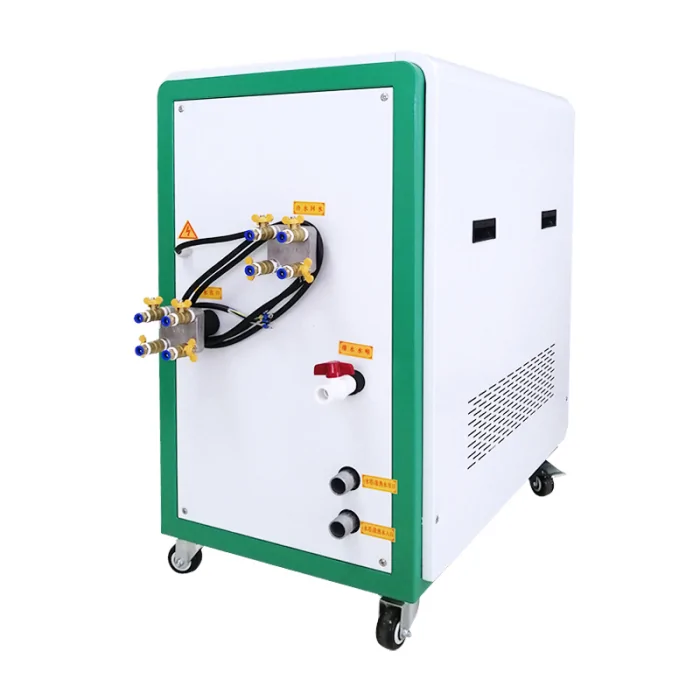

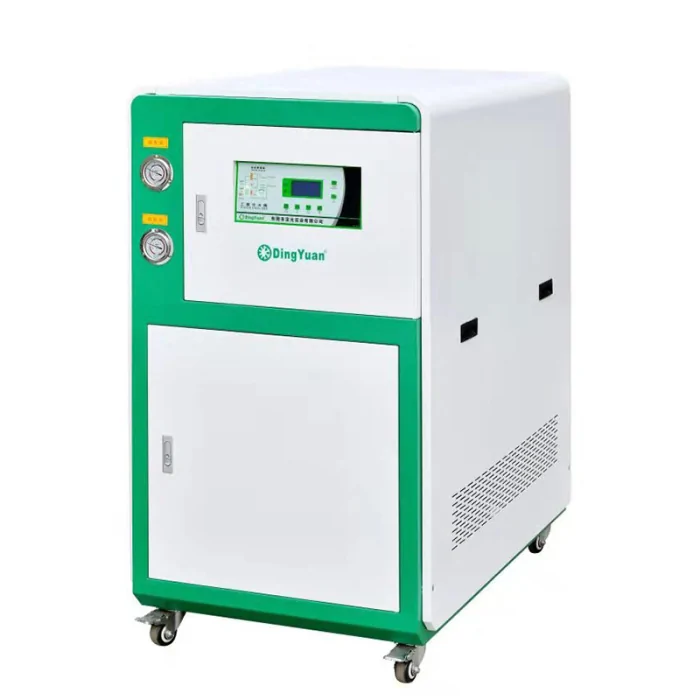

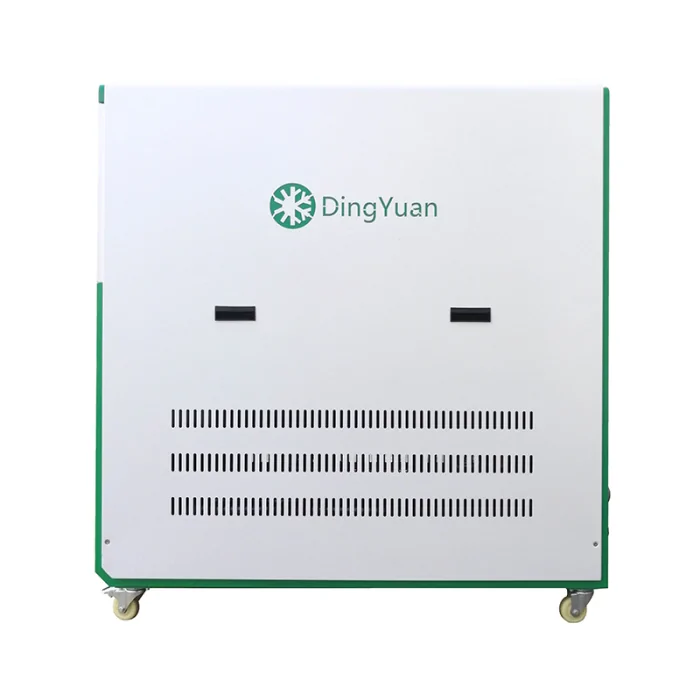

Water cooled chiller 02

• The energy efficiency degree has already been above the first level of national energy efficiency index.
• Working stably, safely and reliably under the environment temperature of 0~45℃
• P.I.D. Microprocessor control--easy to operate, accurately control temperature range from 3~50℃. Precision: ±0.1℃
• Brandnew imported famous brand compressor
• Well-known brand water pump
• Famous brand electricity and other spare parts
• Own brand independently designed and developed high efficiency condenser and evaporator to ensure super refrigeration
• Well designed and reasonable pipelines--ensures power supply and saves energy.
• Intelligent control panel display--shows temperatures of outlet and inlet chilled water and each specific Error on(It is clear to know each Error) and provides visualized and direct setting
• Industrial designed-elegant and ergonomic.
• Comprehensive safety protection system, main nine types protection function shown as the following:
  1. Overheat alarm
  2. Phase sequence error alarm
  3. Motor or compressor overload alarm
  4. Three-phase imbalance protection
  5. Over current protection
  6. Ground Pin Current alarm
  7. Lack water protection
  8. High pressure too high protection
  9. Low pressure too low protection

Specification

• Cooling Capacity: 11.8KW / 10159.8kcal/h / 3.36tons / 40.3kbtu/h
• Total Input Power: 3.3KW
• Voltage: 3Phase/380V/50Hz
• Chiller Temperature Range: 5-35℃
• SUS Tank capacity: 52L
• Refrigerant Type: R407/R22
• Compressor power: 3KW/4HP
• Water Pump Power: 0.375KW/0.5HP; Pump head: 16m; Pump Flow: 50~100 L/Min
• Condenser: Shell and tube type condenser
• Evaporator: Tank-coil type evaporator (Can be customized Shell and tube type evaporator)
• Size: 865*530*1010 MM; Weight: 125kg

Remark: The above data of our standard type chiller, if you have different or other special request, such as: power supply(voltage/frequency/phase), pump pressure, water flow rate, water tank capacity and refrigerant gas, etc.), please feel free to contact us, we can customize for you.
