Air cooled chiller

The DY-FSC series industrial air cooled chillers are widely used in many industries like: plastic and rubber manufacturing, electronic productions, electroplating, medical chemistry, ultrasonic cooling and printing business, etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. Dingyuan Industrial air cooled chillers are with simple operation, reasonable design and superior quality with more than one hundred different models. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

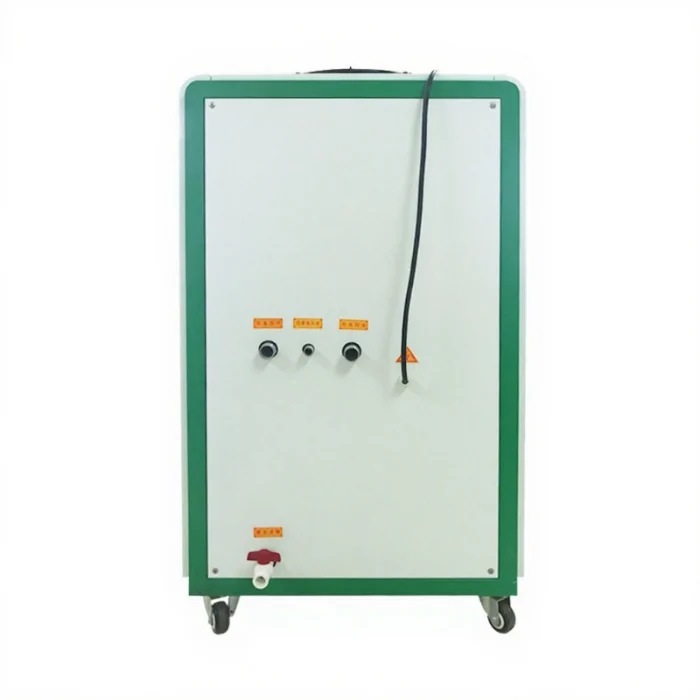

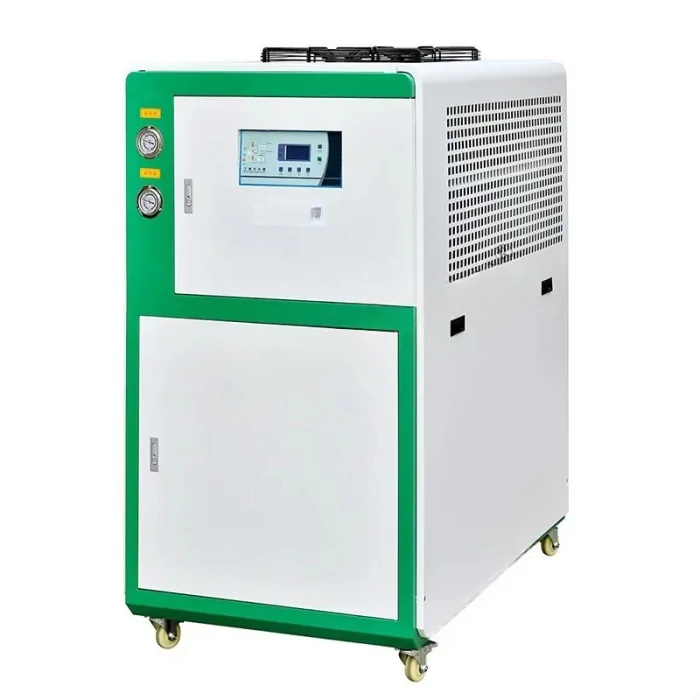

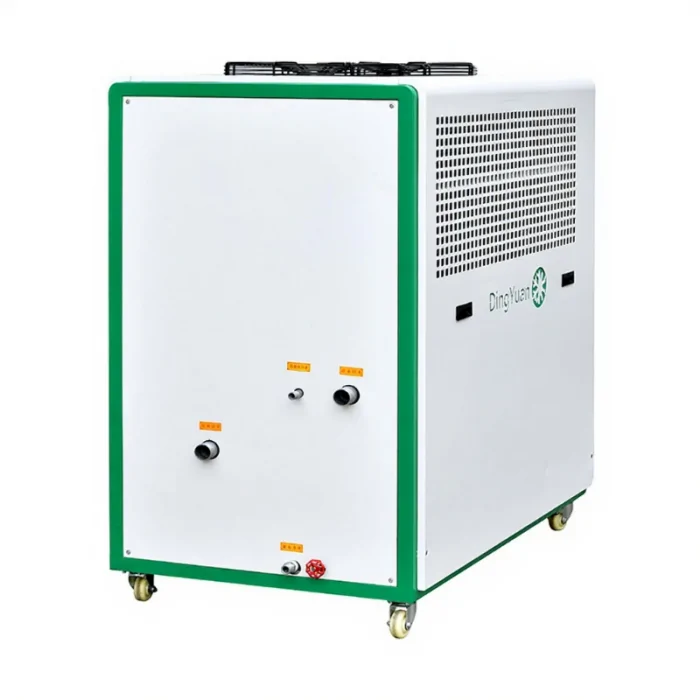

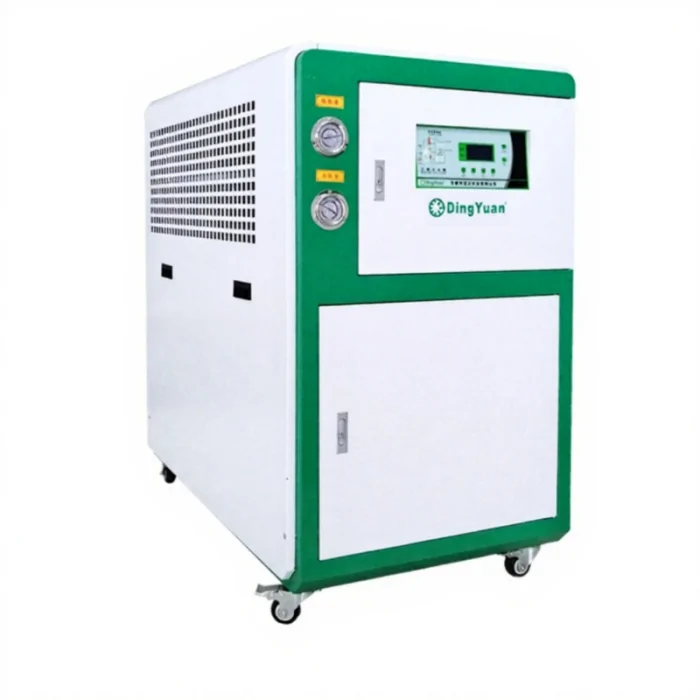

Model: DY-FSC10A


  • The energy efficiency degree has already been above the first level of national energy efficiency index.
  • Working stably, safely and reliably under the environment temperature of 0~45℃
  • P.I.D. Microprocessor control--easy to operate, accurately control temperature range from 3~50℃. Precision: ±0.1℃
  • Brandnew imported famous brand compressor
  • Well-known brand water pump
  • Famous brand electricity and other spare parts
  • Own brand independently designed and developed high efficiency condenser and evaporator to ensure super refrigeration
  • Frequency high power, big air flow rate and low-noise cooling fan--ensures nice heating dissipation
  • Well designed and reasonable pipelines--ensures power supply and saves energy.
  • Intelligent control panel display--shows temperatures of outlet and inlet chilled water and each specific Error on(It is clear to know each Error) and provides visualized and direct setting
  • Industrial designed-elegant and ergonomic.
  • Comprehensive safety protection system, main nine types protection function shown as the following:
    1. Overheat alarm
    2. Phase sequence error alarm
    3. Motor or compressor overload alarm
    4. Three-phase imbalance protection
    5. Over current protection
    6. Ground Pin Current alarm
    7. Lack water protection
    8. High pressure too high protection
    9. Low pressure too low protection

Specification

  • Cooling Capacity: 9.15KW / 7878.15kcal/h / 2.60tons / 31.2kbtu/h
  • Total Input Power: 3.16KW
  • Voltage: 3Phase/380V/50Hz
  • Chiller Temperature Range: 5-35℃
  • SUS Tank capacity: 52L
  • Refrigerant Type: R407/R22
  • Compressor power: 2.6KW/3.5HP
  • Water Pump Power: 0.375KW/0.5HP; Pump head: 16m; Pump Flow: 5.4m³/hr
  • Fan Dia & Qty: 400*1pcs; Cooling air flow rate: 4235m³/hr
  • Condenser: Finned condenser
  • Evaporator: Tank-coil type evaporator (Can be customized Shell and tube type evaporator)
  • Size: 700*560*1100 MM; Weight: 155kg

Application

Dust free workshop
Electronic components industry
Extrusion industry
Food and beverage industry
Nonwovens industry
Nonwovens industry
Pharmaceutical industry
Plastic rubber industry
Printing industry
